Text-Rendering Probe

ELI5 (Explain Like I'm 5)

• The Big Idea: AI image models are famously bad at drawing readable words — a sign that should say "OPEN" comes out "OPNE" or worse. Part of the reason is just math: if the model draws each letter right 9 times out of 10, then a 4-letter word needs four lucky letters in a row, and the chance of getting the whole word right shrinks fast. This project measures that shrinking.
• Analogy: It's like flipping a coin that lands heads 90% of the time. One flip? Usually heads. But four heads in a row? Only about 66% of the time. Every extra letter is another flip you have to win, so long words are much more likely to have at least one wrong letter.
• Example: We build a model that draws single digits well (~88% correct), then ask it to draw digit "strings" of length 1 to 4 and read them back. One digit: 88% perfect. Four digits: only 60% perfect — even though each individual digit is still ~88%. The word gets harder purely because it's longer.

Key Insight

Text rendering — drawing legible, correctly-spelled words inside an image — was for years generation's most embarrassing failure, because a model that only matches overall image statistics learns the shape of letters but not that their exact order matters. This project builds a targeted probe: 200 prompts of the form "a sign that says '…'", run through open models, scoring how often the text comes out spelled right. Isolating one specific capability lets you rank models on it directly, and reveals how much newer models like Flux have closed a gap that older Stable Diffusion models could not.

What's in this directory

File	Role
probe.py	Trains a single-digit renderer, generates digit-string "signs" of length 1-4, OCRs them with project 58's classifier, and plots accuracy vs. length

python probe.py --data-dir data      # ~7 min on CPU

What we measure, and the honest simplification

We isolate one of the two forces that make text rendering hard: the multiplicative compounding of per-character errors. Each character is drawn by an independent single-digit class-conditional DDPM (per-character accuracy ~88%), and k of them are laid side by side into a "sign". A string counts as correct only if the OCR reads back every character correctly.

This deliberately sets aside the other force — the joint-rendering failures (cramped spacing, letters bleeding together, wrong letter order) that real models add on top. In other words, the curve below is the best case: even a model whose characters are independent and 88%-reliable hits a wall on long strings. Real models sit below this line.

Results

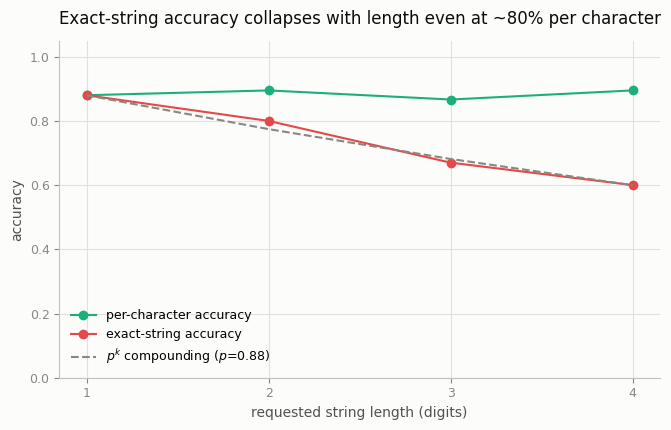

The multiplicative wall. Per-character accuracy stays flat (~88%), but exact-string accuracy falls with length and tracks the p^k prediction almost exactly — the signature of independent errors compounding:

length,exact_accuracy,per_char_accuracy
1,0.88,0.88
2,0.80,0.90
3,0.67,0.87
4,0.60,0.90

At p = 0.88, the compounding prediction is 0.88, 0.77, 0.68, 0.60 for lengths 1-4 — within a couple of points of the measured curve. Nothing about the model got worse for longer strings; there were simply more independent chances to slip.

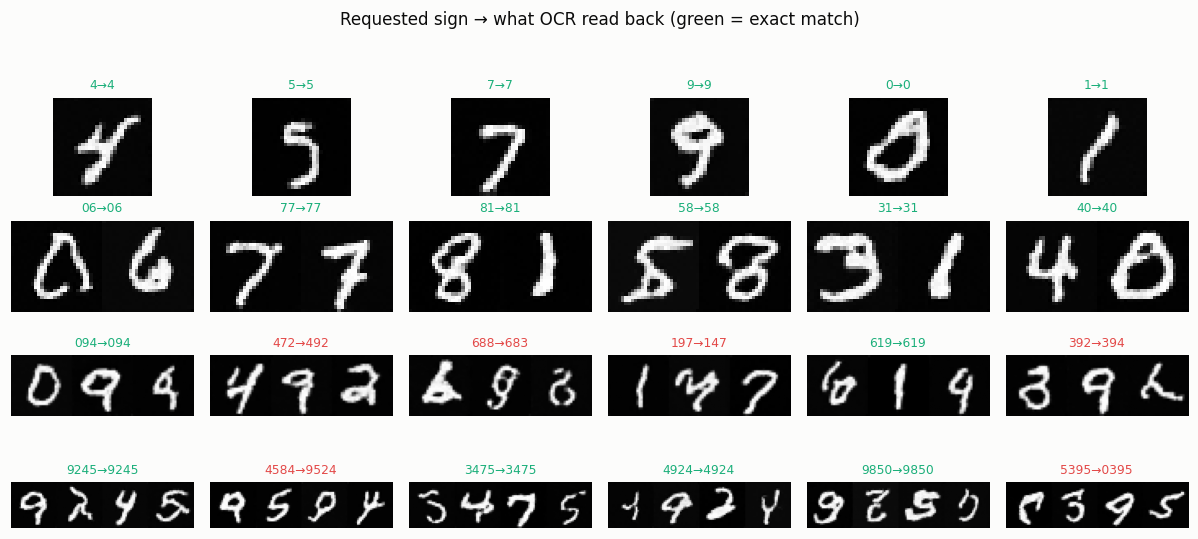

What that looks like. Requested sign → what OCR read back (green = every character correct). The failures are single-character slips inside otherwise-fine strings — exactly what dooms long text:

Why this is the right way to probe a capability

A single aggregate quality score would never surface this. By constructing prompts that isolate one capability (spelling a string of a known length) and grading with an automatic reader, the probe turns a vague complaint ("models are bad at text") into a quantitative law you can track across models — the same philosophy as the GenEval harness for composition. Real progress on text rendering (Imagen 3, Flux, Ideogram) came from attacking exactly this measured gap with character-aware conditioning and targeted data.

Things to try

• Raise --steps to push per-character accuracy toward 95% and watch the whole curve lift — but the 4-digit number still lags the 1-digit number by the same compounding factor.
• Extend MAXLEN past 4 to watch exact-string accuracy head toward zero — the reason long paragraphs of rendered text were hopeless for years.
• Replace independent rendering with a joint multi-slot model (see the GenEval two-slot generator) to add the second failure force and watch the curve drop below p^k.
