Watermarking

ELI5 (Explain Like I'm 5)

• The Big Idea: When an AI makes a picture, we want to secretly stamp it so that later anyone with the secret key can prove "a machine made this" — but the stamp has to be invisible, so it can't change how the picture looks. We hide the stamp in the parts of the image your eye barely notices (fine, high-detail ripples), then check for it with a matching key.
• Analogy: It's like the invisible-ink mark on paper money. You can't see it in normal light, and it doesn't change how the bill looks or spends — but shine the right light (the secret key) and the mark glows. And just like a bill that's been through the wash, the mark has to survive some rough handling (blurring, compression) to be useful.
• Example: We generate handwritten digits, hide a secret pattern in their high-frequency detail, and build a detector. Watermarked and original images look identical (37 dB — imperceptible), yet the detector flags 100% of watermarked images and 0% of clean ones. Then we attack the images and watch the mark survive noise and JPEG but die under a heavy crop.

Key Insight

As AI images flood the internet, being able to prove an image was machine-generated becomes a safety requirement, and watermarking embeds an invisible, detectable signal that says "made by AI" without changing how the picture looks. In this project you add such a mark to your generator's outputs — either stamped into the pixels afterward or baked into the sampling process like SynthID — then build a detector and confirm it flags your images while leaving real photos alone. The core tension you will feel is robustness vs invisibility: a mark strong enough to survive cropping and JPEG compression is harder to keep imperceptible.

What's in this directory

File	Role
watermark.py	Generates images with the phase-5 DDPM, embeds a DCT spread-spectrum mark, runs the detector, and sweeps four attacks

python watermark.py --data-dir data      # ~4 min (mostly the one-off generator train)

How the watermark works

This is a spread-spectrum watermark in the frequency domain (the Cox et al. recipe every production scheme descends from):

1. A secret key — a fixed pseudo-random pattern of +1/-1 signs over a band of mid-frequency DCT coefficients. Mid-frequency is the sweet spot: too low and the mark is visible, too high and blur/JPEG erase it.
2. Embed — take the image's 2-D DCT, add alpha × sign to the band, invert the DCT. The energy is spread thinly across ~1,800 coefficients, so no single pixel changes much.
3. Detect — take the (possibly attacked) image's DCT and correlate the band with the secret signs. A watermarked image scores ≈ alpha; a clean image's coefficients are uncorrelated with the key and score ≈ 0.

One practical note the code makes concrete: the generated digit is upscaled to 112×112 before marking. A 28×28 thumbnail simply doesn't have enough low-energy high-frequency coefficients to hide an invisible mark in — the host image's own spectrum drowns it. Real images are large and smooth, which is exactly what makes invisible watermarking possible.

Results

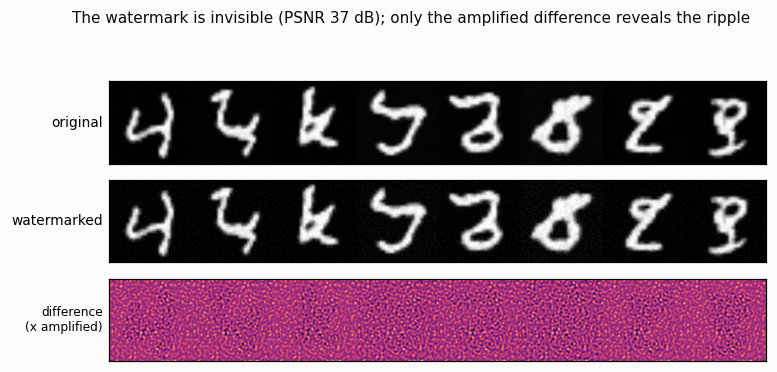

Invisible, and cleanly detectable. Watermarked and original are indistinguishable at 37 dB PSNR; only the ×-amplified difference shows the hidden ripple:

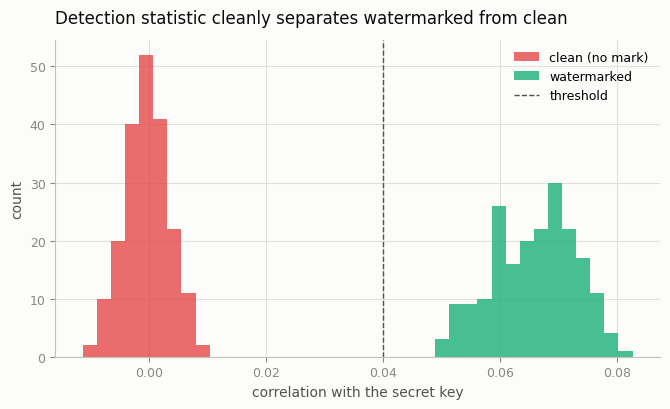

The detector's statistic puts the two populations in different zip codes — TPR 100%, FPR 0%:

psnr_db,37.4
TPR,1.000
FPR,0.000
stat_watermarked,0.066
stat_clean,-0.000

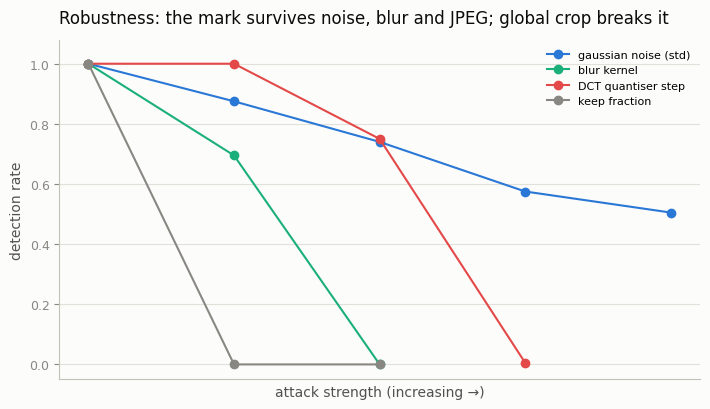

Robustness vs. the attack. The mark degrades gracefully under additive noise and JPEG-style quantization, weakens under blur (which attacks exactly the high frequencies it lives in), and breaks under a crop — because cropping and resizing desynchronize the global DCT, shifting every coefficient. That crop fragility is the textbook weakness of non-synchronized transform-domain watermarks; production systems add a synchronization template or spatial redundancy (or, like SynthID, bake the mark into sampling) to survive it:

noise (std) 0.1->88%  0.2->74%  0.3->57%
blur kernel  3->70%   5->0%
jpeg quant   0.1->100% 0.2->75% 0.4->0%
crop keep    0.9->0%

Robustness vs. invisibility, made concrete

Raise --alpha and rerun: detection under noise and blur improves, but PSNR drops and the ripple starts to show. That single knob is the central tension the Key Insight describes — there is no free lunch between a mark you can't see and a mark you can't remove.

Things to try

• Sweep --alpha (e.g. 0.04, 0.08, 0.16) and plot PSNR vs. blur-robustness — the invisibility/robustness frontier as an explicit curve.
• Add a synchronization step (detect the crop by searching over scales) and watch crop-robustness recover — the fix real systems use.
• Contrast with an in-sampling watermark (bias the initial noise) for a SynthID-style scheme that survives geometric edits by construction.
